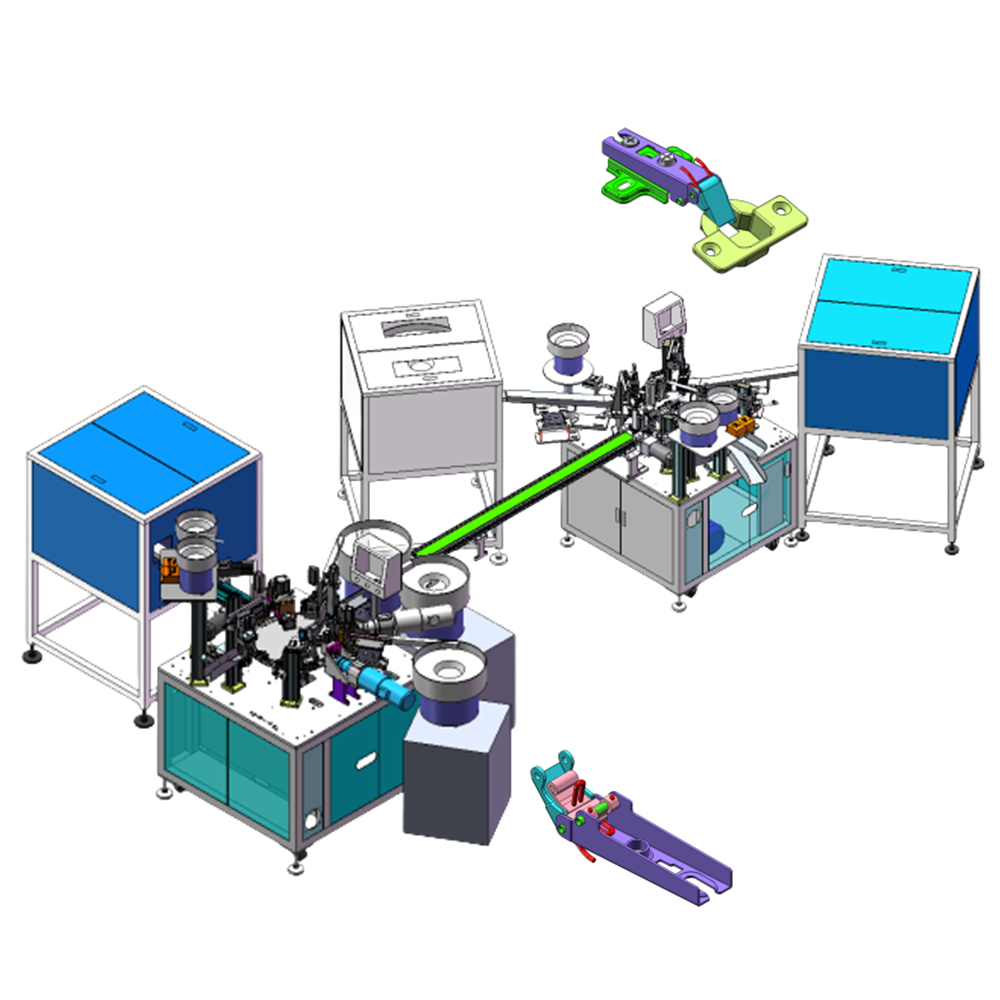

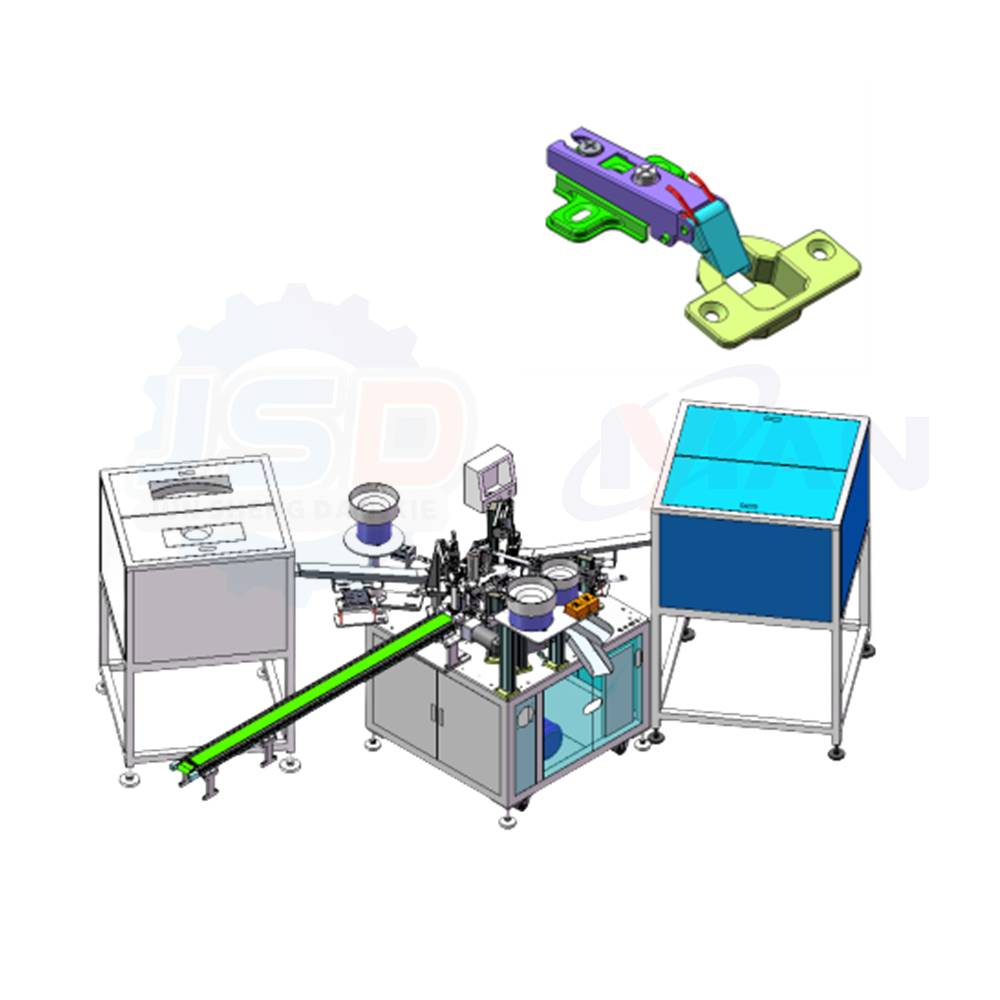

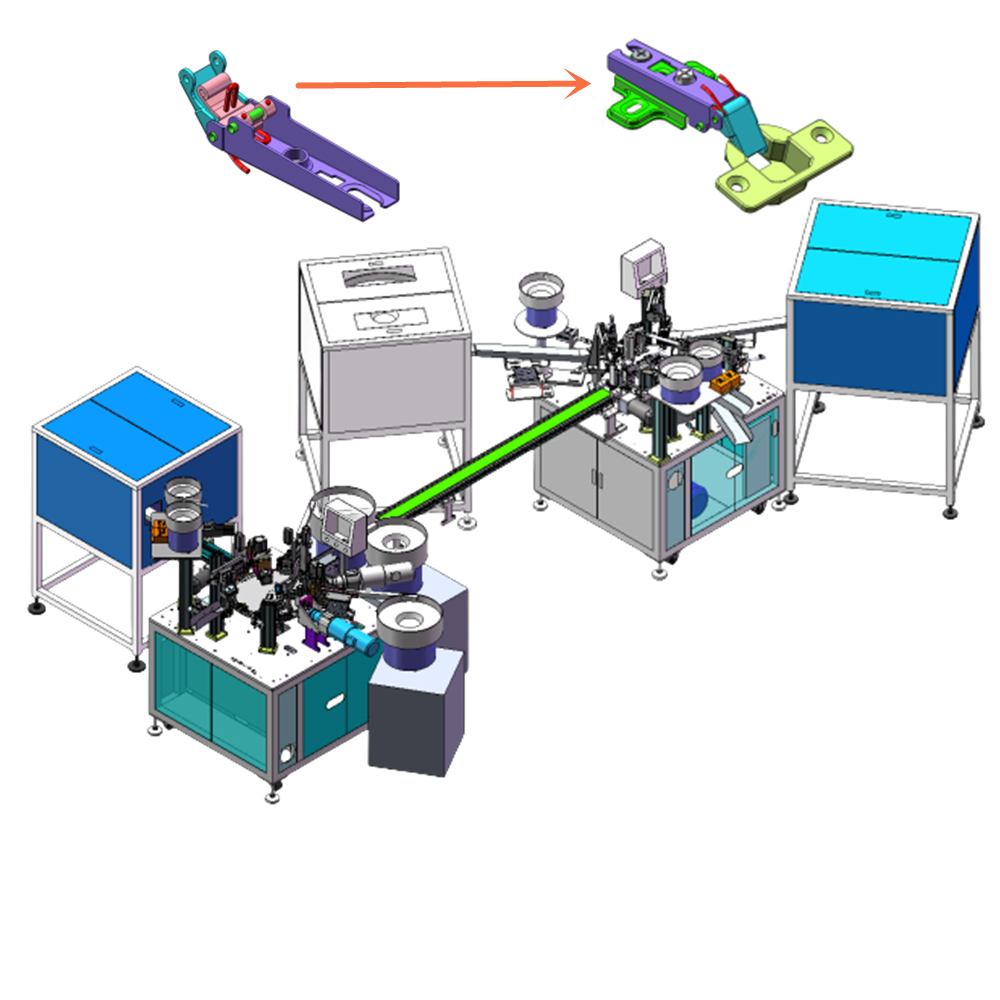

| Name of equipment： | 261 Two way normal cabinet hinge automatic assembly machine |
| Equipment Composition: | Arm assembly machine, base assembly machine, automatic vibrantion disc |

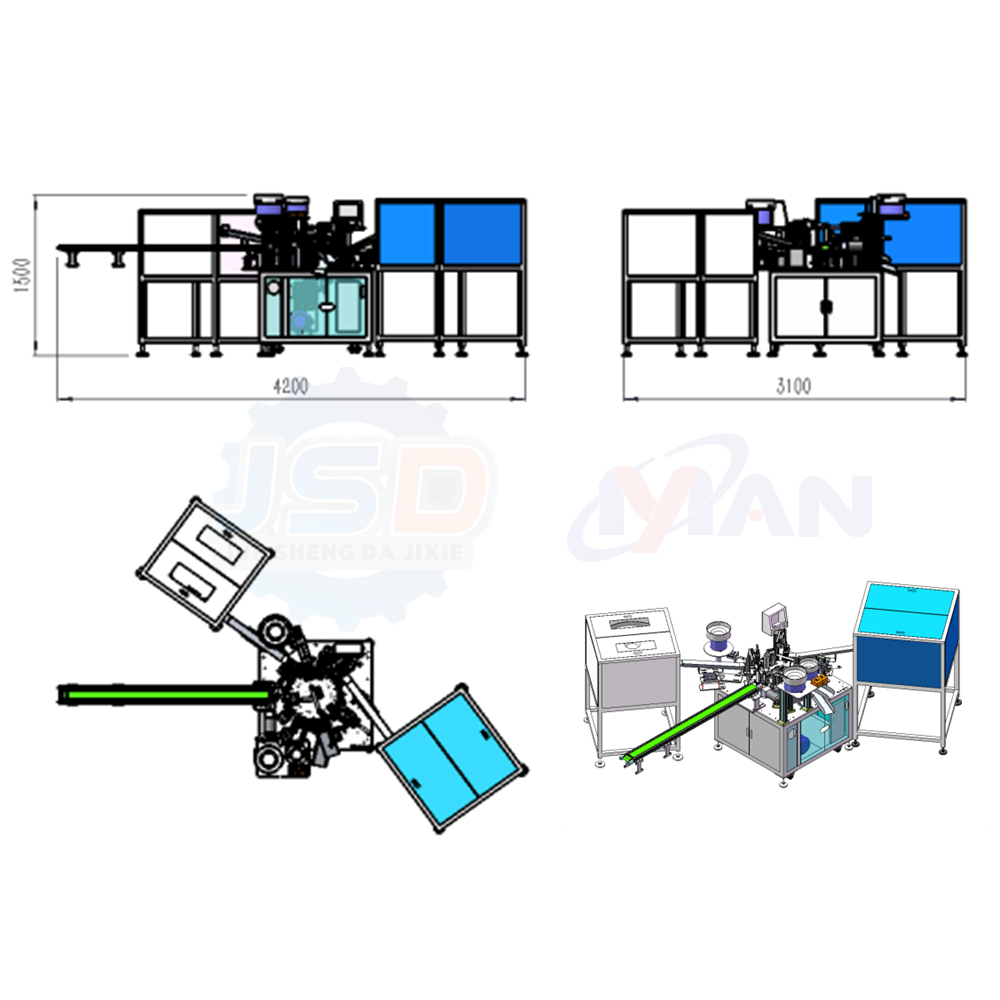

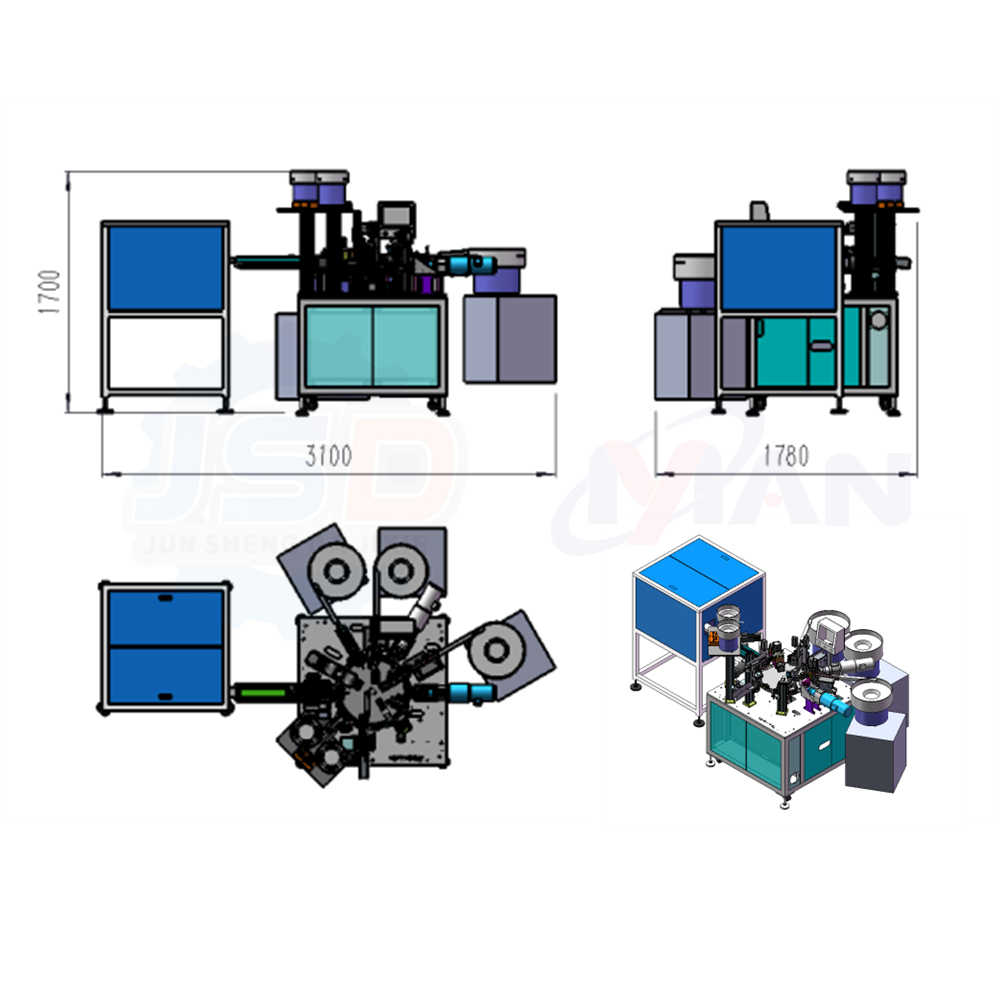

| Dimension of equipment: | 5800*2500*1800mm(L*W*H) |
| Weight of equipment: | About 3000kgs |
| Surface treatment of machine parts | Hard chrome plating |
| Equipment applicable product range | 216 two way normal cabinet hinge(full overlay,half overy and insert can not use same machine) |
| Main working methods of the equipment | Disc feeding assembly |
| Feeding methods | Vibrantion disc feeding and conveyer delivery |
| Rated power supply | U=AC220V 50-60Hz |
| Rated voltage | 10.0kw |
| Rated air | P=0.5-0.8Mpa |
| Production capacity | 1200-1500 pieces/hour |
| Operator | 2 person |
2-Main equipment configuration list
|
Configuration 配置 |
Brand 品牌 |
Configuration 配置 |
Brand 品牌 |
|
Air cylinder 气缸 |
Taiwan AirTAC 台湾亚德客 |
Cylinder induction line 气缸感应线 |
Taiwan AirTAC 台湾亚德客 |
|
Slicer 分割器 |
China ZXB 中国正信 |
Touch screen 接触屏 |
WEINVIEW 威纶通 |
|
PLC 编程 |
Japan Mitsubishi 日本三菱 |
Feeder 送料器 |
China 中国国产 |
|
Riveting 旋铆机 |
China 中国国产 |
Air pressure gauge 气压表 |
Taiwan AirTAC 台湾亚德客 |
|
Servo Motor 伺服电机 |
Taiwan Delta 台湾台达 |
Japan Mitsubishi 日本三菱 |
|
|
Slide 滑轨 |
Taiwan HIWIN 台湾上银 |
Oil Pump 油泵 |
China 中国国产 |
|
Stepper motor 步进电机 |
RCON 台湾研控 |
Magnetic valve 电磁阀 |
Taiwan AirTAC 台湾亚德客 |
