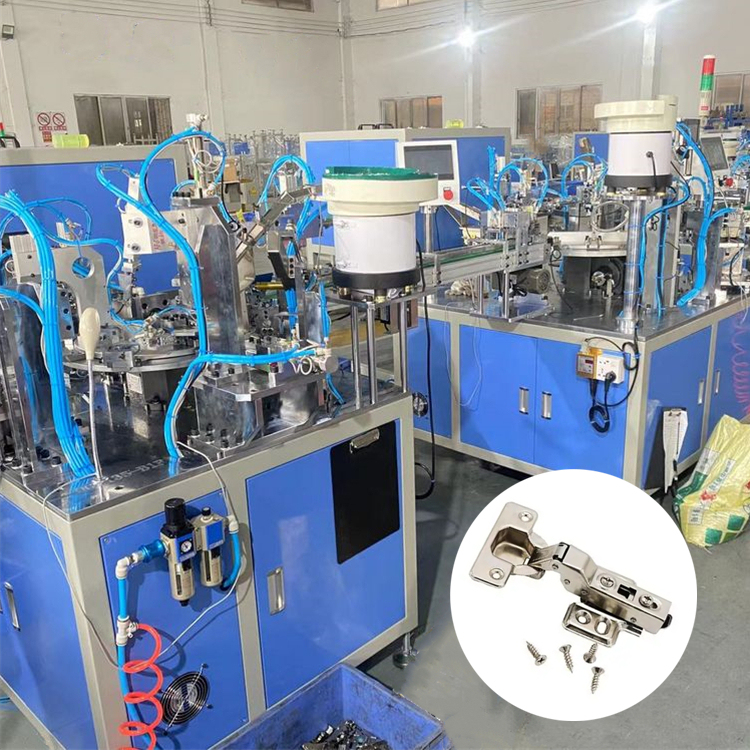

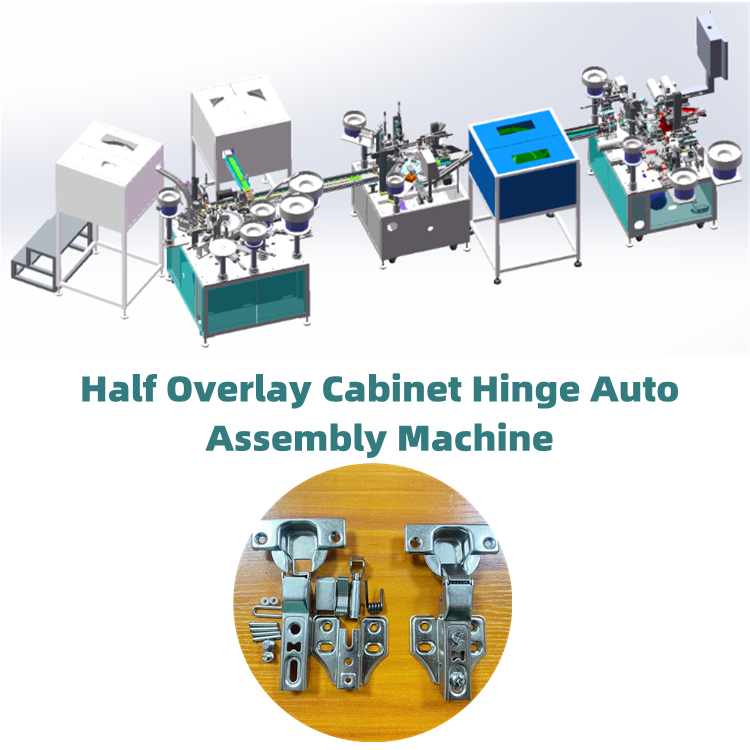

| Basic Parameter | Name of Equipment | Half Overlay Hydraulic Hinge Assembly Machine |
| Composition of Equipment | Hinge Arm Assembly Unit,Hinge Base Assembly Unit,Hinge Damper Set Assembly Unit | |
| Dimension of Equipment | 7880*2650*1800mm(L*W*H) | |
| Usage Environment | Power Supply | U=AC220,50-60HZ |
| Air Supply | P=0.5-0.8Mpa | |
| Temperture |
0 - 50℃ |
|
| Mainly Parameter | Efficiency | 1000-1200 pcs/hour |
| Main Appliances | Taiwan Airtac Air Cylinder,Taiwan Hiwin Slider,Taiwan Delta Sevor Motor,Japan Mitsubishi PLC System,HMI Touch Screen,and Schneider, Mingwei and other low-voltage electrical appliances | |
| Assembled Parts | Hinge Arm,Hinge Neck,Hinge Cup,Hinge Base,Hinge Lamination,Hinge Triangle Part,Spring,U Pin,Rivets,Hydraulic Damper,Base Screw,Adjusting Screw,Plastic Part |
