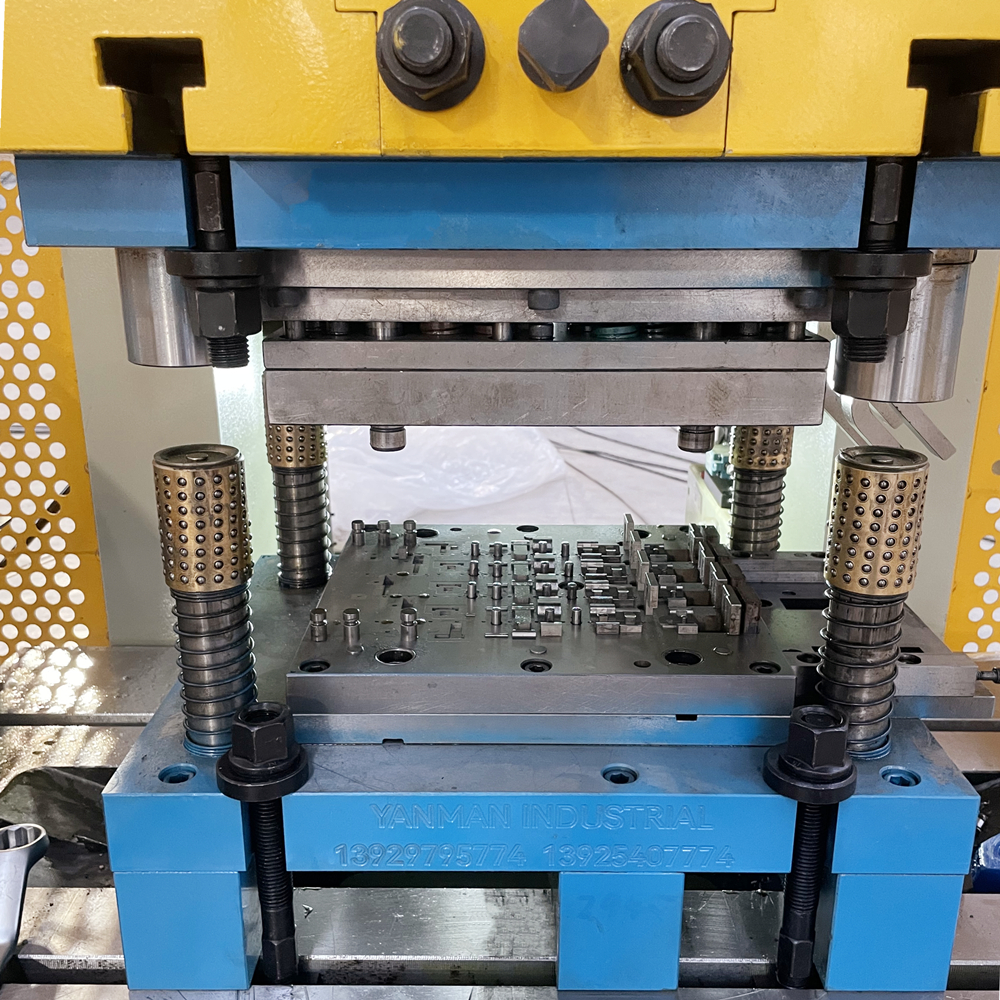

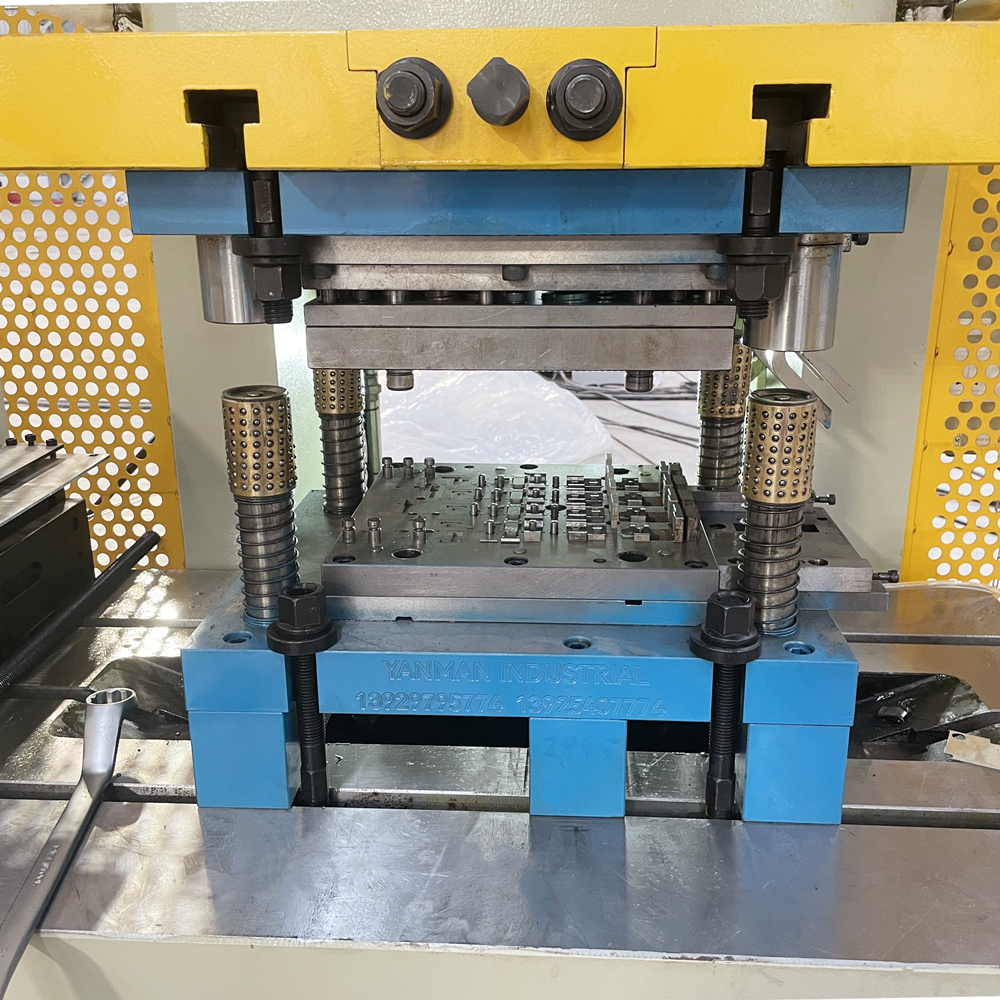

Metal Furniture Cabinet Hinge Clip Progressive Stamping Dies Press Machine Stamping Tooling

No.ST-005

Four cavities mold is usually used to produce large quantities of parts,which can improve production efficiency and reduce costs.This mold is composed of multiple punches and templates,the metal sheet is formed by continous stamping process according to the desigb requirements.

SPECIFICATION

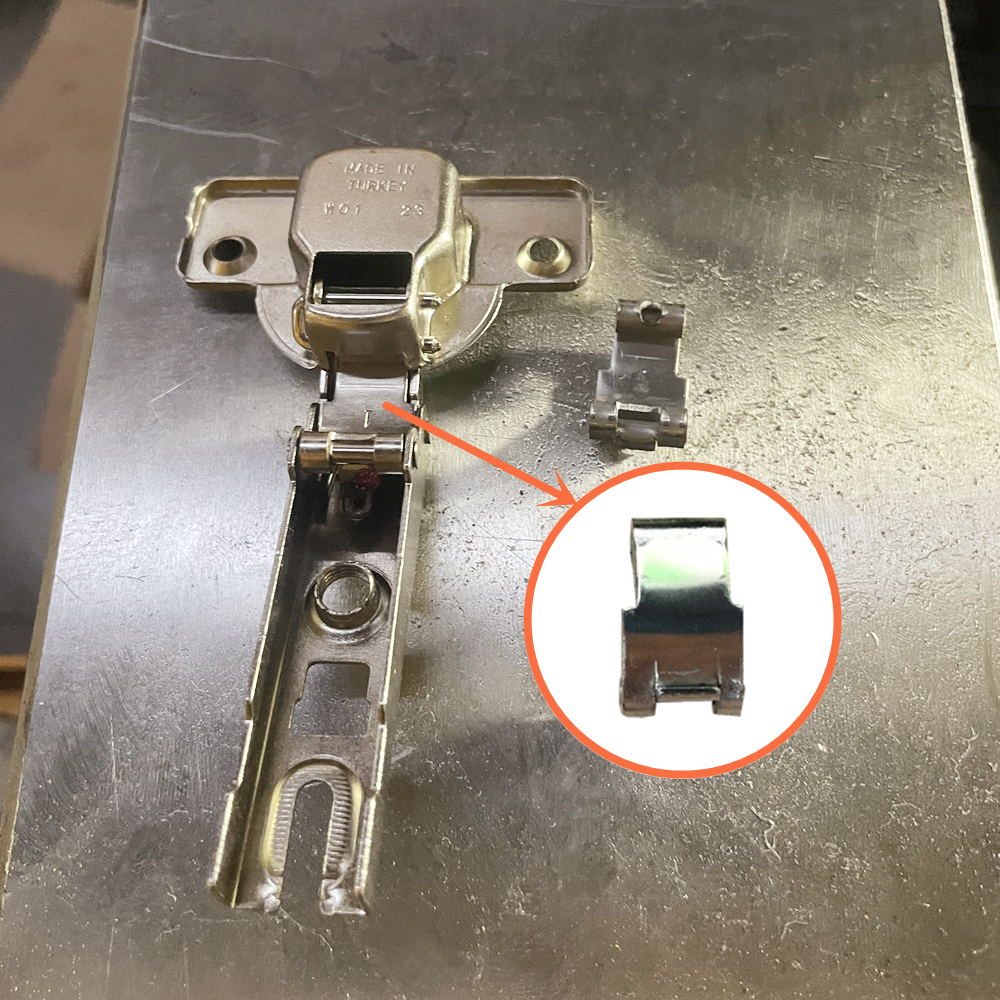

Hinge Clip Cold Progressive Stamping Dies

Mold Size:470*380*330mm
Power press machine requirment:80T single crankshaft
Production output:Four cavities or Three cavities
Material:(Standrad)
1-Upper die base&lower die base:high quality 45#steel
2-Padding plate:high quality CR12MOV
3-Support plate:high quality CR12MOV
4-Striper plate:high quality CR12MOV
5-Female plate:high quality CR12MOV
6-Part of cutting,punching and forming:high quality SKD-11
7-Wire cutting:High speed wire cut,middle speed wire cut
