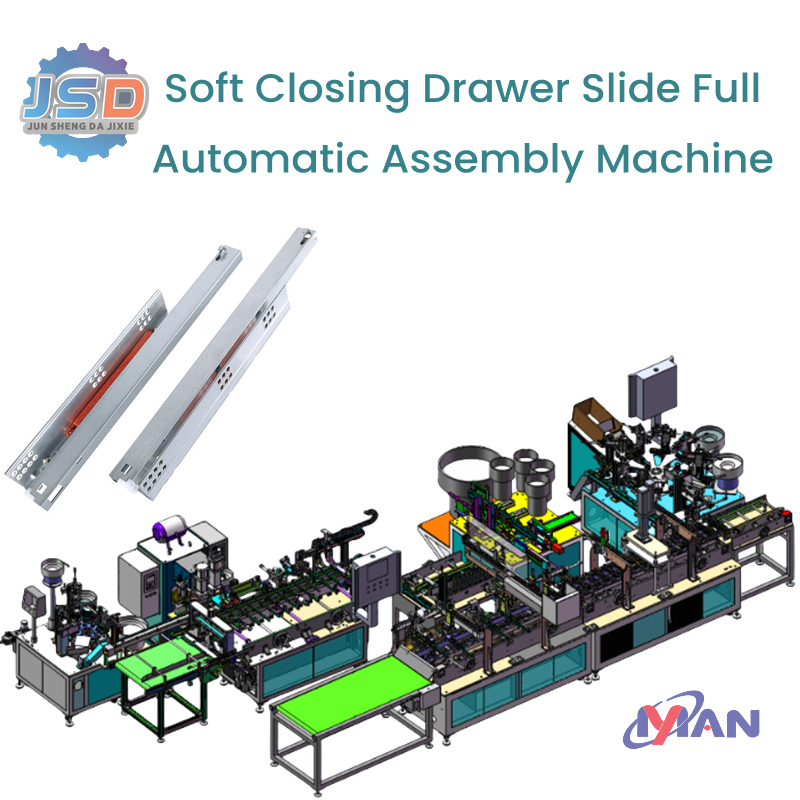

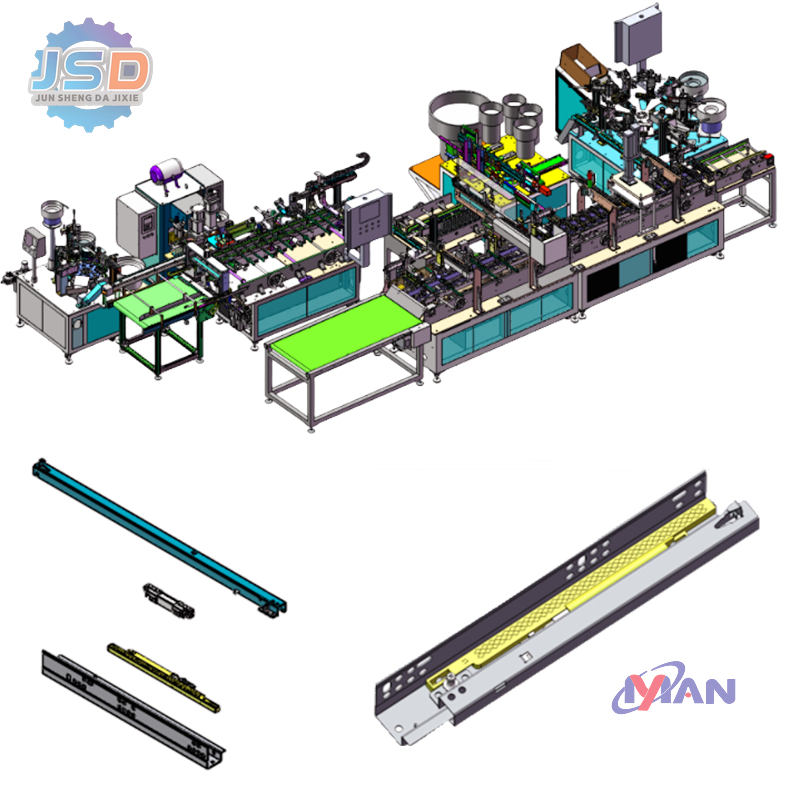

Soft Close Undermount Drawer Slide Full Automatic Assembly Machine

Base parameter

Name of equipment

Soft close undermount drawer slide full automatic assembly machine

Equipment composition

Moveable slide assembly machine,fixed slide assembly machine,spring frame assembly machine,connect part assembly machine

Outline dimension

8200mm*3900mm*1850mm

(L*W8*H)

Part treatment:

Hard chrome plating

Working environment

Voltage

U=AC220V 50-60Hz

Air supply

P=0.5-0.8Mpa

Cooling water

water flow 12L/MIN,temperature 2-30℃

Working environment temperature

0 - 50℃

Speed

800-1000 pcs/hour

Equipment Applicable Products

Two fold spring frame, two fold slider, two fold connector, tension spring, hydraulic damper, fixed slide, moveable slide, needle pulling, connecting piece

Main configurations

Airtac cylinder, Hiwin slide rail, Delta servo motor, Mitsubishi PLC, HMI touch screen, Schneider, Mingwei and other low-voltage electrical appliances

Main function

1.common 228-478mm different length moveable slide product.
2.Real time check the firmness of the welding position.
3.The CCD vision system detects in real-time whether the welded dimension meet the specified requirement.
4.Assembly of Spring frame,fixed point loading,compaction
5.Assembly of ball frame,adding oil on positioning position
6.Moveable slide assembly, positioned with spring frame sliders
7.Shift point between active track and fixed track
