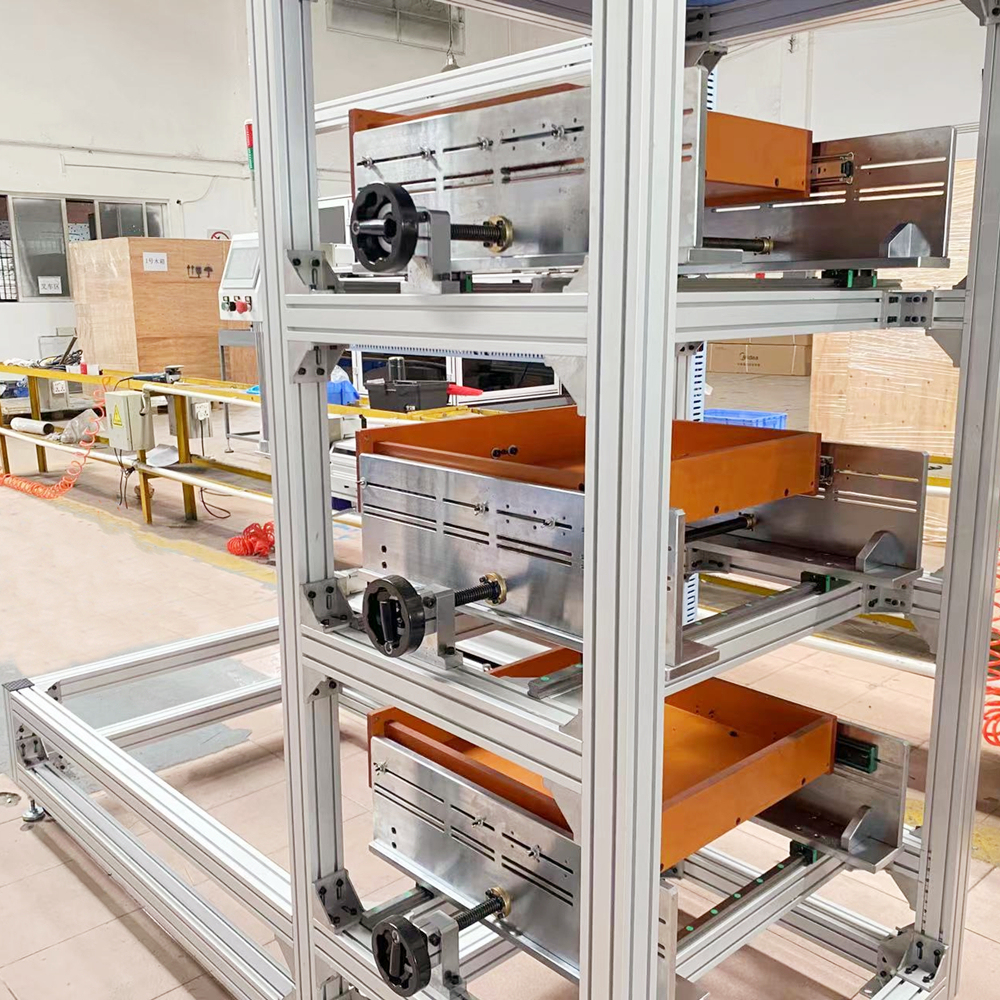

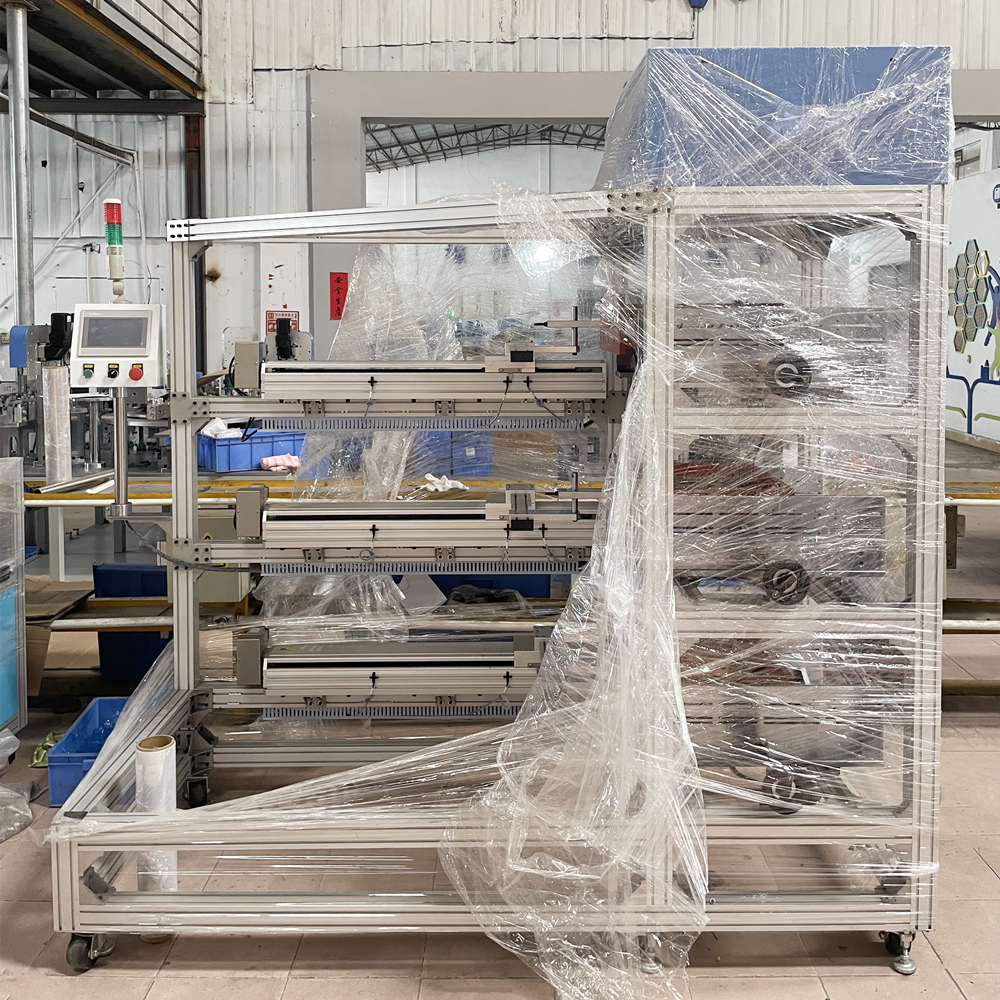

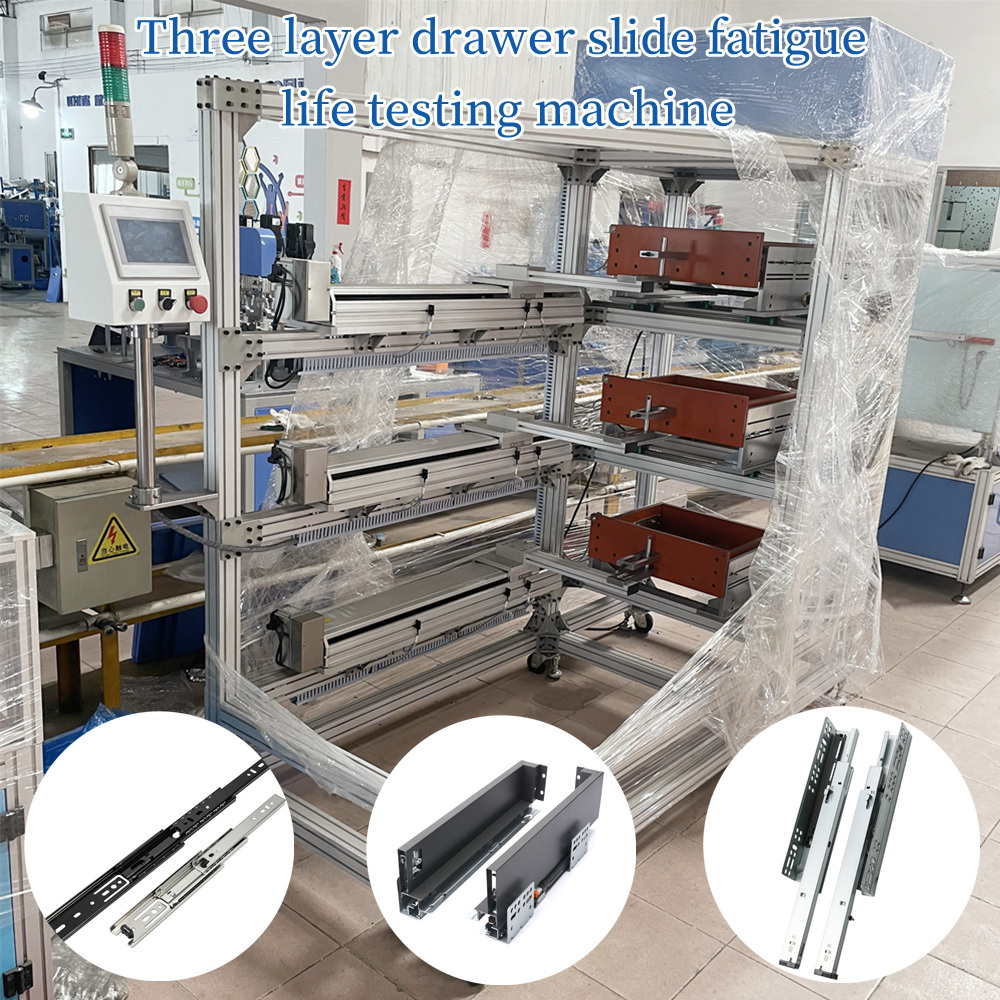

Three Layer Drawer Slide Fatigue Life Testing Machine

Equipment name

Three-Layer Slide Rail Life Testing Device

Composition of equipment

Ball Screw Linear Module, Aluminum Frame, Acrylic Drawer

Equipment dimension

About 2200mm*1400*2100mm(L*W*H)

Weight of equipment

About 600KG

Equipment part surface

Hard chrome plated

Scope of machine use for

Hidden slide rail,hydraulic slide rail,drawer box

Feeding method

No

Rated power

U=AC220V  50-60Hz

Rated power

10.0KW

Rated air

No need

Machine speed

1000 cycle time/hour

Operate people need

1 person

Main parameter

Hiwin slider slide rail and ball screw,Jardine synchronous wheel,motor,Delta servo motor,sensor,Mitsubishi PLC nad HIM touch screen.

Major function

1-This machine can save 5-10 persons
2-Distinguish between qualified products and a variety of defective products
3-Fatigue testing of products
4-Drawer:Made of acrylic board, can bear 30KG weigh

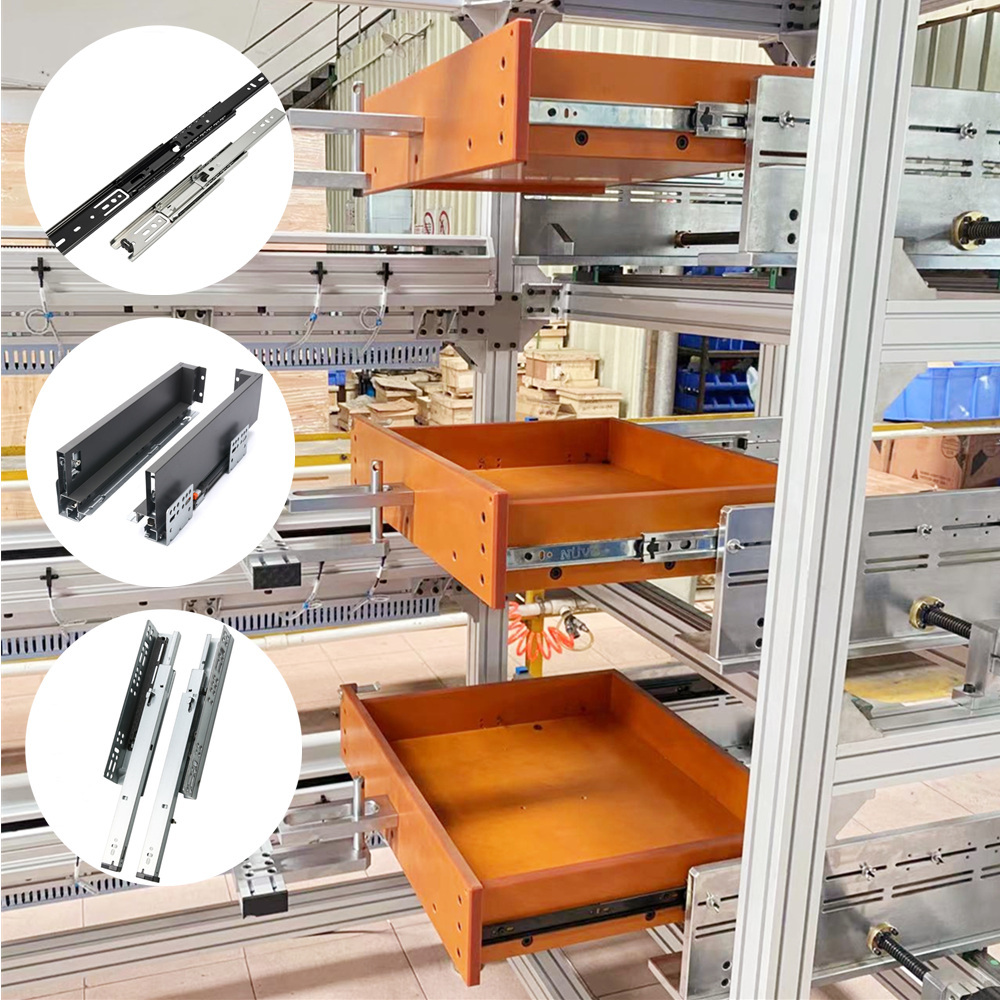

5-Slide rail testing machine:It can test 3 different kind of slide rail.Hidden slide rail,ball bearing slide rail can use same machine,slide box cannot use same machine
6-Two slide table ball screw linear module: running speed up to 0.25 meters/second, torque up to 400 Newton/meter
7-Touch screen: with the total number of test times display, test times setting, with power failure memory function;
8-Control system: password protection must be set when the number of tests is zeroed;
